CC Series Headers
Modular “plug-in” Electronic packaging system for relays, timers and solid state controls.
Header Construction Material:
Made from General All Purpose Black Phenolic (PF)
Pins: Tin Plated Brass
Modor “CC” headers mate with Amphenol “MIP” series sockets or equivalent
Mates with Modor “CC” series housing
“CC20P” Mates with Amphenol #59-470 or equivalent
Extremely Hard, Good Thermal Stability, Chemical Imperiousness

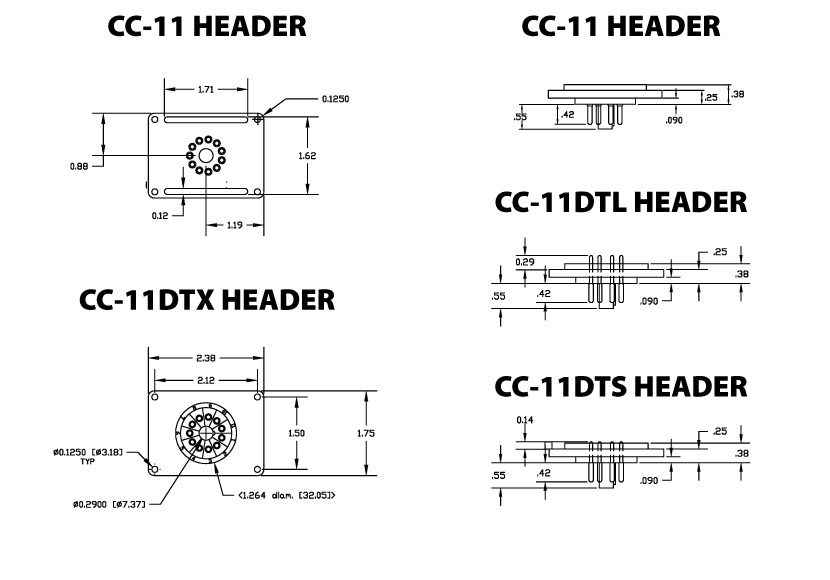

Configurations: 8,9,11,20 PIN Bases
|
Part ID |
|||||
|
CC |
CONTACTS |
VOLT RATING RMS AT SEA LEVEL |
CURRENT RATING |
“A” DIM |
“B” DIM |
|
CC8P |
8 |
1250 |
5 |
||
|
CC9P |
9 |
500 |
5 |
||
|
CC11P |
11 |
500 |
5 |
||
|
CC20P |
20 |
500 |
5 |
||
|
Part ID |
|||||
|
CCMF |
CONTACTS |
VOLT RATING RMS AT SEA LEVEL |
CURRENT RATING |
“A” DIM |
“B” DIM |
|
CAMF4P |
4 |
1250 |
5 |
||
|
CCMF6P |
6 |
1250 |
5 |
||
|
CCMF8P |
8 |
1250 |
5 |
||
|
CCMF11P |
11 |
500 |
5 |
||
"Octal style" headers, In-Line style headers, Blade Type headers, Double thru pin connectors, Metal flange headers also available, Machining and printing available
