CC Series Housing

CC Series Housing

Modular “plug-in” Electronic packaging system

*Made from Lexan 141R polycarbonate (PC)

  • Extremely rugged durable protection
  • Very high impact resistance, UL approved material
  • Excellent insulation resistance and tensile strength characteristics
  • Interchangeable components are easily assembled with ease of testing and service
  • Designed to fit all standard socket configurations
  • Made in U.S.A.
  • Easily Imprinted
  • All standard components available from a choice of stock colors and materials to meet yours needs
  • Also available in custom colors per a quantity size of ?.
  • Series CC housings can be modified or customized to meet your specific applications, contact us for a quote
  • Housing Material: Polycarbonate
  • Flammability: V0-V2
  • Heat Distortion:
    • Polystyrene: 155°C - 170°C
    • Lexan: 280°C - 298°C
    • Nylon: 275°C - 300°C
  • Melting temperature (Tm) 267 °C
  • Surface resistivity: 1015 Ω/sq
  • Volume resistivity (ρ): 1012–1014 Ω·m

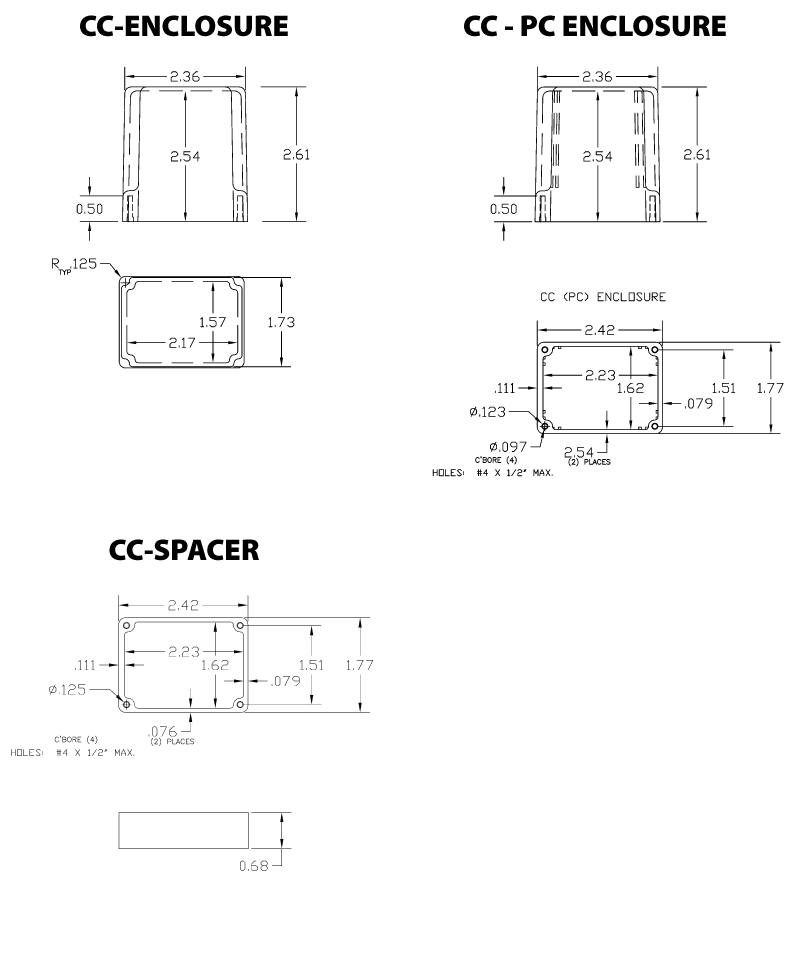

CC/CCPC Specifications:

  • Width (mm / in): 44.9 / 1.73
  • Length (mm): 62.5 / 2.46
  • Height (mm): 66.3 / 2.61

CCL/CCLPC Specifications (L=Long)(PC - Printed Circuitboard):

  • Width (mm / in): 44.9 / 1.75
  • Length (mm): 62.5 / 2.46
  • Height (mm): 83.0 / 3.27
